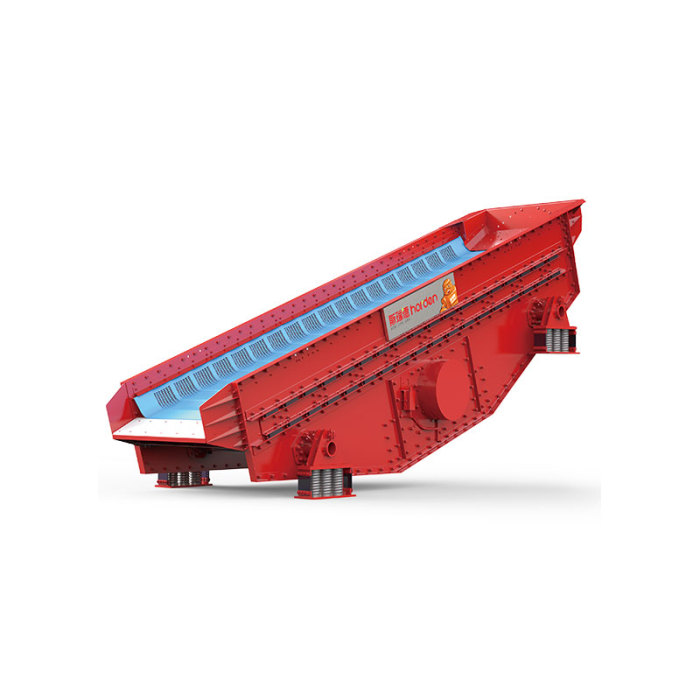

Flip-flow Screen
| Categories | Flip-flow Screen |
|---|---|
| Brand | Harden |
| Model | SZS-F1652 |
| Terms of Payment | L/C, T/T |
| Update Time | Dec 17,2024 |
Detail Information
Flip-flow Screen
According to the principle of mechanical vibration, a single drive is used to generate dual vibrations, so the dynamic screen plate obtains extremely high acceleration through tension and relaxation deformation.
lt is suitable for difficult-to-screen materialsespecially materials with high wet viscosity that are prone to clogging and jamming. The flexible screen plate and relaxation efficiency have powerful screening and anti-blocking performance.
Product Parameter
|
Model
|
SZS-C1652
|
|
Power (KW）
|
45
|
|
Screening Area (mm)
|
1600*5200
|
|
Machine Dimension (mm)
|
6800*3600*2100
|
Machine Weight (t) | 6.7 |
Capacity (m³/h) | 20-25 |
Product Features
Dynamic Flip-flow Plate
According to the material characteristics, vibration parameterscan be quickly adjusted on site.
Optional Multi-layer Design
According to actual screening requirements, double-layer or even multi-layer relaxation screens can be customized to achieve a variety of particle size classifications.
Smooth Start And Stop
Minimize start-stop shaking and reduce instantaneous impact on the screen machine and foundation. At the same time, the starting current of the motor is limited to reduce the power supply pressure of the factory.
Dynamic Flip-flow Plate
The relaxation-moving screen has anacceleration that exceeds that of traditional screen machines, effectively prevents clogging and adhesion,andhas a strong self-cleaning effect. lt is especially suitable for fine screening ofdifficult-to-screen materials.
Modular design
The screen is fixedwithout screwsand the quick-release design allowsfor rapid on-site replacement ofmodular structural components which facilitates maintenance and replacement and can be flexibly adjusted according to the productionline.
Performance optimization
Special instruments are used to detect and adjust various performance indicators before leaving the factory to ensure that the equipment reaches optimal operating status.
Structural optimization
The reinforced screen machine structure improves vibration fatigue life and overall reliability. The finite element method is used to make the structural design more reasonable, avoid resonance, and have better stability.
Diluted oil lubrication
The exciter bearing adopts double sealing and diluted oil lubrication, which effectively extends the bearing life and makes maintenance easier.
Convenient adjustment
According to material characteristics, vibration parameters can be quickly adjusted on-site
Optional Multi-layer Design
According to actual screening requirements, double-layer or even multi-layer relaxation screens can be customized to achieve a variety of particle size classifications.
Smooth start and stop
Minimize start-stop jitter and reduce instantaneous impact on the screen machine and foundation. At the same time, the starting current of the motor is limited to reduce the power supply pressure of the factory.
Typical Application Range
Construction Waste
Waste Battery
MSW
Waste Plastic
Industrial Waste
Biomass Waste
