Triangle Roller Screen
| Categories | Triangle Roller Screen |
|---|---|
| Brand | Harden |
| Model | TDS2000/TDS3000/TDS5000 |
| Terms of Payment | L/C, T/T |
| Update Time | Nov 21,2024 |
Detail Information

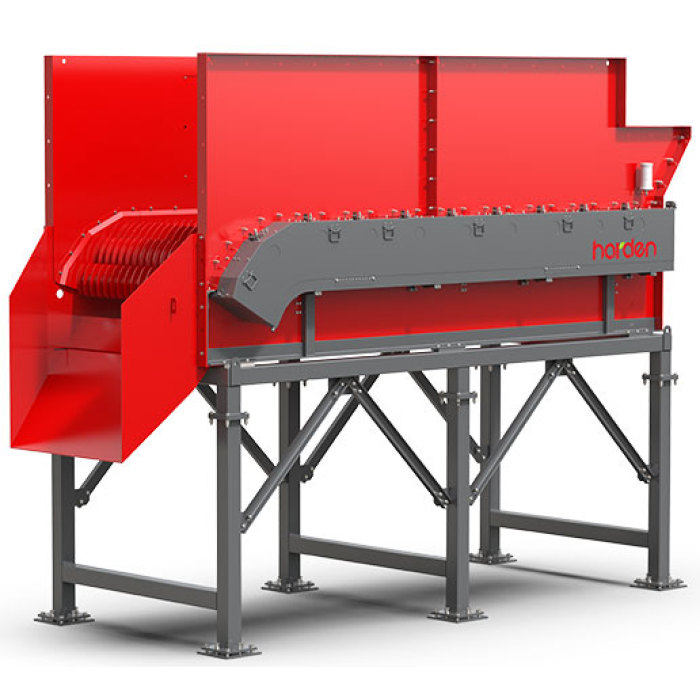

Triangle Roller Screen
HARDEN triangular roller screen is an innovative screening equipment developed with multiple patented technologies to meet the diverse needs of solid waste treatment processes. Its unique design allows for modular combination and assembly, catering to various screening size requirements while prioritizing innovation, energy efficiency, and environmental sustainability. With its low energy consumption, minimal noise, high efficiency, and exceptional screening pass rate, this equipment represents a significant advancement in screening technology.
The design incorporates patented anti-winding technology for the screen shaft, a discharge guide structure to prevent material blockage, and our proprietary "shredder feed guide, diversion, and even material structure" technology, placing it at the forefront of advanced screening equipment.
This equipment provides a comprehensive solution for solid waste treatment processes and is primarily utilized for screening materials with low viscosity and moisture content, including raw domestic waste, household waste, construction waste, biomass fuel, kitchen waste, general industrial waste, and waste rubber tires.
Product Parameter
|
Product Model
|
Net Width
|
Roller Screen Length
|
Power |
90% Discharge Size (OPtional)
|
|
TDS 2000
|
1500 mm
|
2500 mm
|
4.0 KW |
50-150 mm
|
|
TDS 3000
|
1500 mm |
3500 mm
|
5.5 KW |
50-150 mm
|
|
TDS 5000
|
1500 mm |
4500 mm
|
5.5 KW |
50-150 mm
|
Product Features
Structural Design
The triangular roller screen features a row of screen shafts driven by a motor, serving as the primary operational component of the screening equipment. Its installation angle can be adjusted to suit the specific material being screened. Incorporating our proprietary technologies such as the "shredder feed guide, drainage, and even material structure," this design induces a wavelike motion in the material, enhancing its movement across the screen surface. This results in higher screening rates, and increased processing flow.
Screening Effect
The screen's unique motion trajectory and robust beating strength, combined with the screen shaft's anti-winding and anti-blocking features, facilitate multiple tumbling of materials and automatic classification, particularly effective for fine-grained materials. The design minimizes clogging and sticking, offering smooth operation with low noise and power consumption. Furthermore, the optimized design significantly reduces dust pollution, aligning with modern industrial production's energy conservation and environmental protection requirements.
Large Processing Capacity
The linear arrangement of the triangular roller screen ensures a constant screen hole size, facilitating higher material processing rates, precise material sizing, and a high pass rate. The wavelike motion of the screen surface aids material dispersion and rolling, preventing fine particles from adhering to the screen holes and providing a self-cleaning effect during the screening process.
Shock Absorbing Protection
Incorporating a shock-absorbing torsion arm design in the reducer, the triangular roller screen effectively mitigates vibration transmission during operation, extending the equipment's service life. This design also buffers the impact of materials on the screen body and power system, providing added protection.
Installation and Maintenance
Featuring a compact and standardized structure, the triangular roller screen saves installation space, and the design incorporates convenient access for maintenance, centralized lubrication of bearings, automatic lubrication system for transmission chains, and overload protection detection for the drive system. The modular assembly facilitates easy customization to meet various customer screening size needs in solid waste treatment.
Typical Application Range
Waste Plastic & Film
Industrial Waste
Construction Waste
Waste Battery
MSW
Biomass
